I’ve often thought about how crucial the right cooling system is for an industrial laser welding machine. I believe it can determine its success or failure. In my experience, achieving strong and precise welds isn’t solely about the welder’s raw power or its advanced features. I’ve learned that how the system controls heat greatly affects the welding speed, the final quality, and even the operational costs. Many people assume all welders operate similarly. But I believe there’s a key point they often don’t see.
How Cooling Affects Laser Welding Machine Performance
I find that the cooling system type sets the top power for an industrial laser welding machine. It also affects how stable the machine runs.

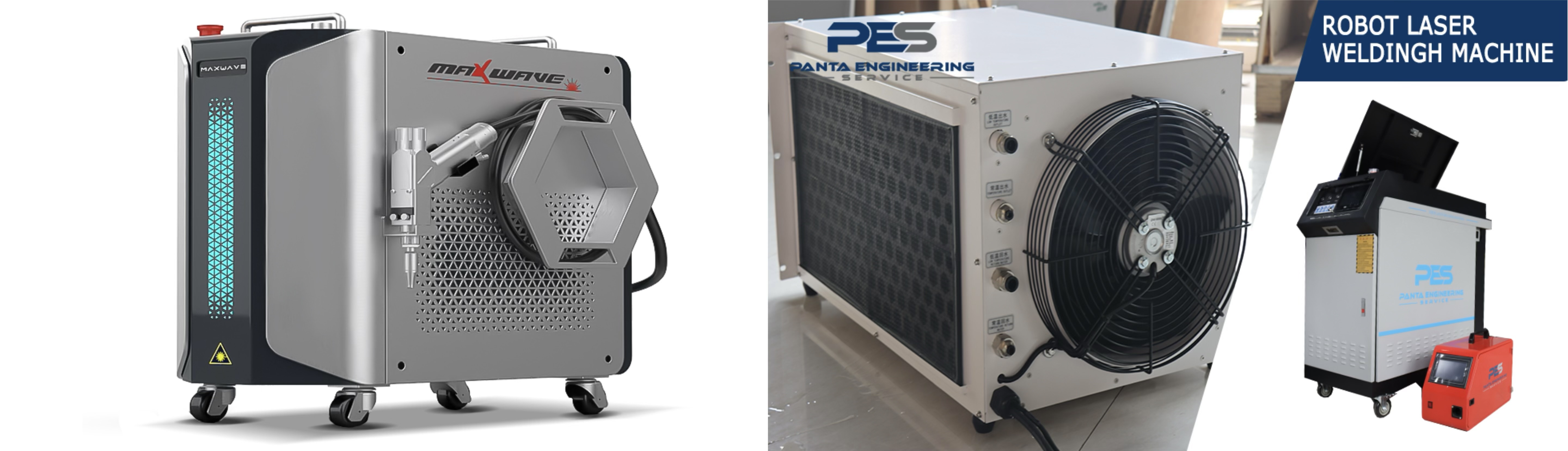

Maximum Power Output: Water-Cooled vs Air-Cooled
- Water-cooled systems support higher continuous outputs—up to 3000W—making them ideal for demanding industrial tasks that require steady power. For example, the iWeld Pro 972 Series uses a water-to-air system and delivers up to 11kW peak power. Based on my experience, a 3000W laser typically needs a 10kW cooling system to prevent overheating.
- Air-cooled systems, like the the MaxWave MW-HW series air-cooled handheld laser welding machine delivers excellent thermal performance even at common power levels like 1500W, ensuring stable, continuous welding. Its air-cooling system eliminates the need for complex water-cooling setups, reducing the risk of failure and making the machine more reliable and easier to maintain. It’s an ideal choice for small to mid-sized manufacturers that demand high welding quality and system stability.
Laser Welding Machine Impact on Beam Quality and Consistency
From my experience, the cooling system in an industrial laser welding machine directly affects laser beam quality and how consistent your welds are. I’ve found that keeping the temperature stable is key. If it’s not stable, the output power can vary and the beam shape can change. This really hurts the weld quality.
Water-Cooled Systems
Water-cooled systems offer powerful, precise cooling, ideal for lasers over 1,000W or long, high-demand use. They circulate chilled water through key parts to prevent overheating and maintain beam stability. With features like filters and temperature alarms, they ensure consistent weld quality. Some setups handle up to 90% of heat output, keeping temperatures stable within ±0.1–0.5°C. One factory saw 15% stronger, more consistent welds after switching to water cooling.
Air-Cooled Systems
Air-cooled systems are cost-effective, portable, and easy to maintain, ideal for lasers under 1,000W in environments below 30°C. However, they offer limited cooling, which can cause unstable output and weld defects in hot or humid conditions. For instance, temperatures above 35°C often lead to beam instability and visible flaws during long operations.
How Cooling Affects Laser Welding Speed and Depth
From my experience, the cooling system in an industrial laser welding machine affects both welding speed and how deep the weld goes. These are two important factors for how much you produce and the quality of your welds.
Welding Speed Comparison
Water-cooled machines provide excellent cooling that enables stable high-power output and continuous heavy-duty use, with welding speeds typically between 6 and 10 meters per minute, making them perfect for high-volume, efficient production. On the other hand, air-cooled machines have limited cooling capacity, usually supporting power up to 1500W. To avoid overheating during long periods, they often lower their output power, resulting in slower welding speeds of 3 to 6 meters per minute, which makes them more suitable for small to medium parts or on-site work.
Welding Depth Comparison
Water-cooled laser welding machines offer stable high power output, enabling deeper welds in a single pass. For instance, a 1500W water-cooled model can weld stainless steel to a depth of 2.5–3.5 mm, while models above 3000W can exceed 5 mm. In contrast, air-cooled machines are better suited for thin materials. A 1500W air-cooled welder typically achieves weld depths of around 1.5–2 mm per pass, but extended use at deeper levels may lead to overheating and reduced power performance.
Water-cooled machines are the better choice for high efficiency, deeper welds, and large-scale production, while air-cooled laser welding machines offer more advantages when flexibility, portability, and light to medium-duty work are needed.
Cooling Effects on Laser Welding Machine Lifespan and Parts
Both air-cooled and water-cooled systems impact the lifespan of laser welding machines and the reliability of welded parts.
Water-cooled systems
Water-cooled systems offer excellent cooling, reducing heat stress on key components like the laser pump and optics. This extends machine life, ensures stable laser output, and improves weld quality and part consistency. They are ideal for high-power, long-duration industrial use and often include features like filters and temperature alarms for added protection.
Air-cooled systems
Air-cooled systems have simpler designs, lower cost, and easier maintenance. They don’t require water, avoiding leaks and corrosion, making them more portable and suitable for on-site repairs or tight spaces. Air cooling works well for lower-power lasers (usually under 1500W) in cooler environments (below 30°C). They make handheld welders lighter and easier to use for light to medium tasks.
In summary, water cooling is best for heavy-duty, high-quality welding, while air cooling is great for flexibility, cost-efficiency, and lighter applications. Choosing the right cooling system affects both machine longevity and weld reliability.
Laser Welder Cooling: Operating Cost Factors
When you pick a cooling system for an industrial laser welding machine, I’ve seen it greatly impacts your operating costs. It also affects the maintenance the machine will need over its lifetime.
Air-Cooled Systems
Air-cooled systems have a simple design with lower upfront and maintenance costs. They don’t require coolant or complex piping, making maintenance easier and less expensive. These systems are suitable for lower-power machines and cooler working environments, resulting in lower operating costs. However, their limited cooling capacity can lead to overheating during prolonged or high-power use, which may cause weld quality fluctuations and more frequent equipment failures, increasing repair needs and costs.
Water-Cooled Systems
Water-cooled systems require a higher initial investment and more complex maintenance, including regular coolant replacement, filter cleaning, and pump inspections, which raises maintenance costs. However, their superior cooling ability ensures stable performance during high-power and long-duration operations, reducing equipment breakdowns and downtime. This extends machine lifespan and, over time, can significantly lower overall maintenance costs.
Summary of Operating Cost Considerations
Your total cost for a laser welding machine heavily depends on cooling expenses, including energy and maintenance. It’s important to consider the cooling system’s complexity, efficiency, and ongoing service needs. Investing in a reliable cooling solution pays off with less downtime, better resale value, and greater long-term reliability.
Cooling Systems and Laser Welding Machine Size Compatibility
When you pick a cooling system for an industrial laser welding machine, I believe it really changes the machine’s physical footprint. It also affects how well it adapts to different environments. From my experience, these two points are very important for your factory layout and how usable the machine is on-site.
Space Needs and How Easy It Is to Move the System
Water-cooled systems: I’ve noticed these systems need extra room for things like pumps, pipes, tanks, and heat exchangers. This can make the system larger. Because of this, it might be harder to find a place to install it, and moving it can be difficult, particularly if your facility has limited space. If you’re working on floor plans, I recommend you consider these space requirements. Water-cooled setups can take up quite a bit more room than simpler system types.
Air-cooled systems: Air-cooled laser welding machine, I find, are generally more compact and portable. They require fewer extra components. This makes them a good fit for small work areas or for use out in the field. Modern compact fiber laser systems really show this benefit. Since they don’t need large gas tanks, mirror assemblies, or big cooling systems, you save a good amount of floor space. I think that’s a significant plus.
How Well the System Adapts to the Environment for Good Welds
Temperature control: From my perspective, water cooling is excellent at keeping temperatures steady. This happens even if the temperature around the machine changes. For precision laser welding, this stability is key. I’ve seen even small temperature shifts lead to poor weld quality or an unstable system.
Response to ambient heat: Air-cooled systems can be more affected by high temperatures in the surrounding area. In hot conditions, I’ve observed their cooling power can reduce. This might lead to performance that isn’t always consistent.
Laser type matters: I think it’s worth noting that fiber and disk lasers manage environmental changes better compared to traditional CO₂ lasers. Their design allows for more precise control over the process. This means they can operate reliably under a wider variety of conditions.
Summary
Having worked with different cooling systems in industrial laser welding, I’ve learned something important. From my experience, choosing the right system isn’t just about its immediate power. I believe it’s about finding what perfectly suits your unique needs. You might pick a water-cooled unit for its strength, or an air-cooled one for its ease of use. I feel that every weld truly shows the choices we’ve made. The cooling system you decide on today shapes how you produce things tomorrow. It will also influence your expenses next year. And, it defines the standard of quality you’ll be known for. For more details about handheld laser welder or to get a quote, contact us today!
