Epson D3000-A1R Print Head
Ink Type：Water-based
Weight: 298 g
Nozzle Count：2952
-
Trusted by over 1,000 customers worldwide
-
1–3 year extended warranty coverage
-
Certified to meet international quality standards
-
100% quality inspection before shipment

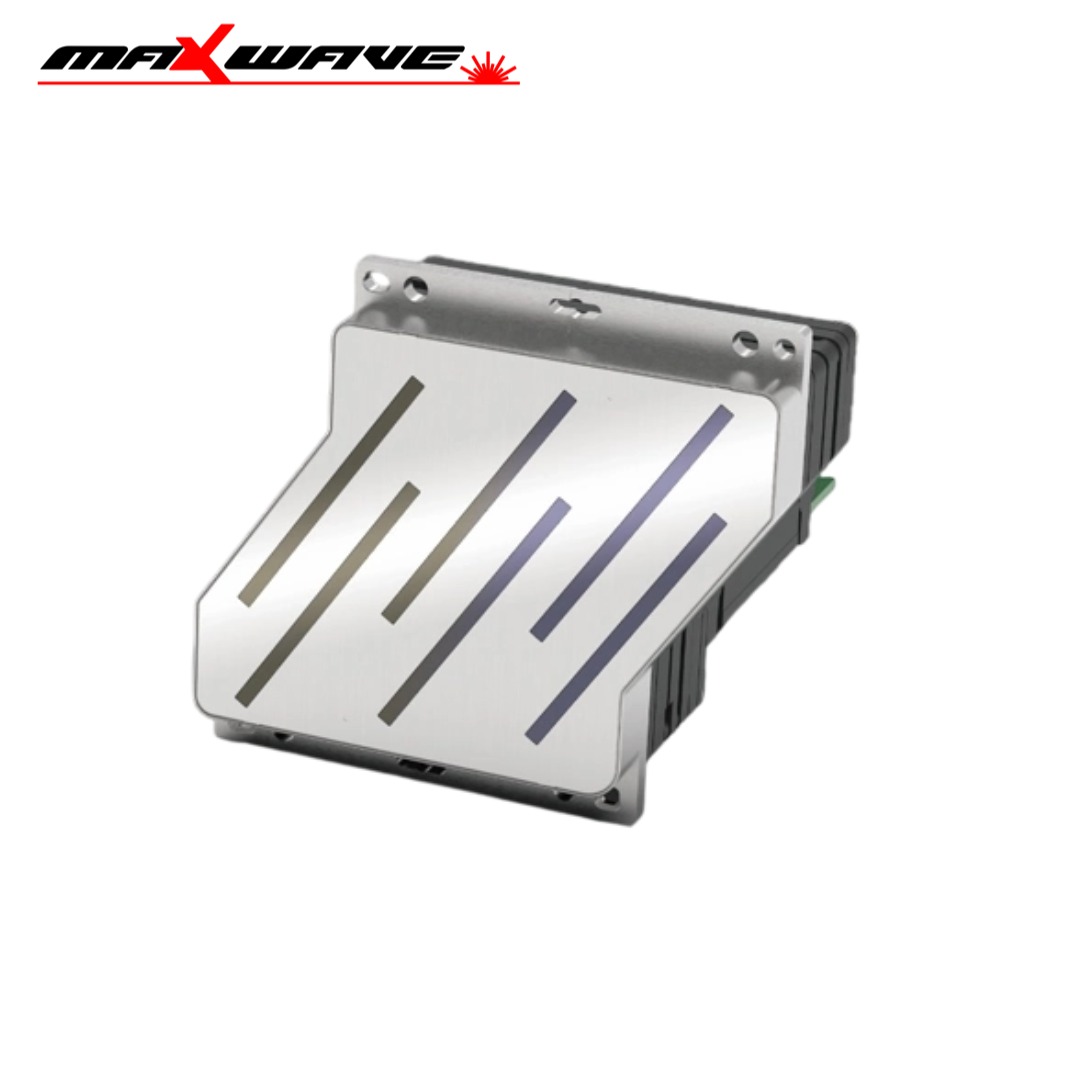

The D3000-A1R print head is a PrecisionCore MicroTFP printhead designed for industrial inkjet applications. It delivers high-resolution printing with dual-color support and adjustable grayscale, ideal for precision marking, coding, and graphic printing.
| Parameter | Value |
|---|---|
| Product Name | D3000-A1R Print Head |
| Ink Type | Water-based |
| Printhead Type | PrecisionCore MicroTFP |

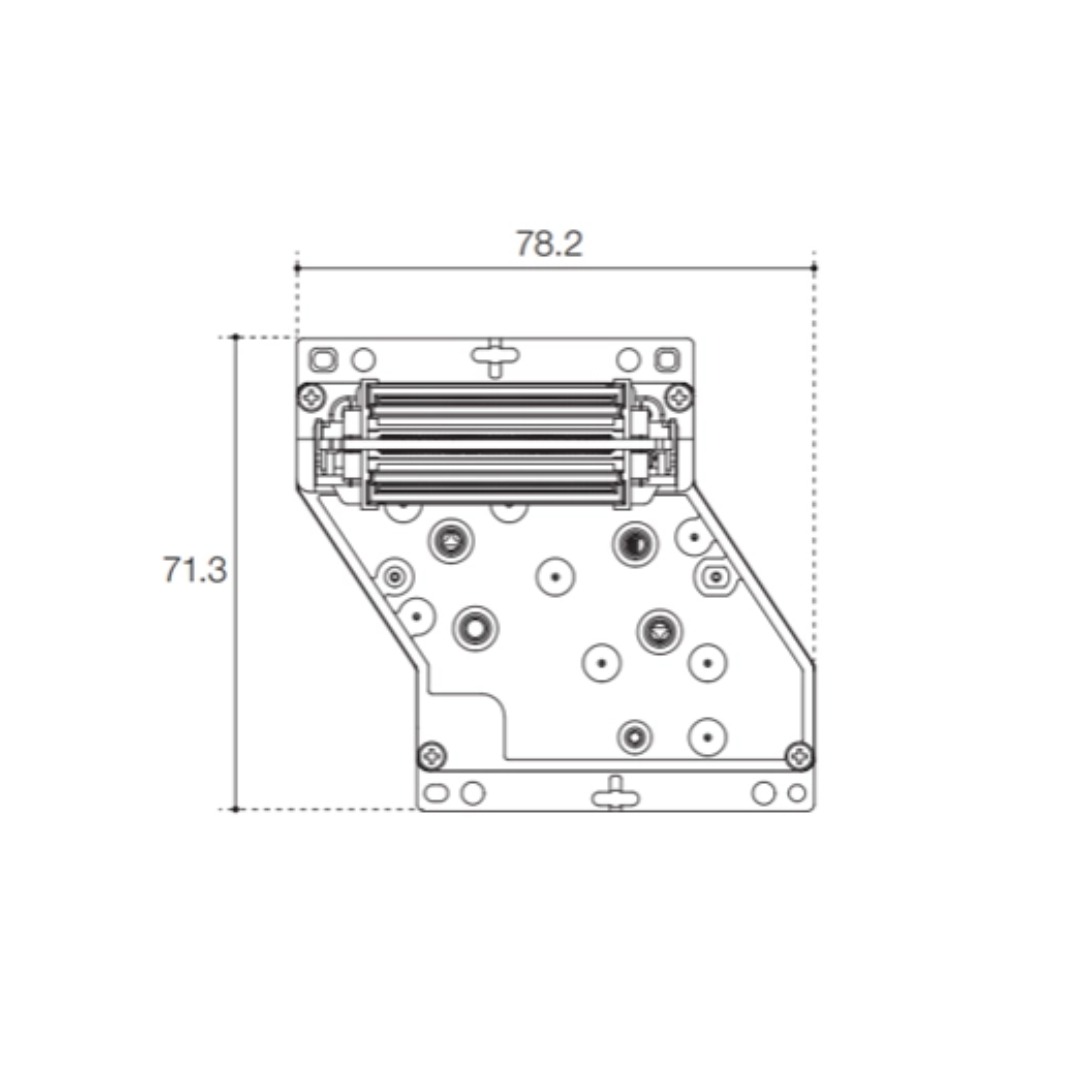

| Dimensions (W x D x H) | 78.2 x 71.3 x 100.4 mm |
| Weight | 298 g |
| Nozzle Count | 2952 |
| Nozzle Resolution | 1200 npi (1 color) / 600 npi (2 colors) |
| Maximum Number of Ink Colors | 2 |

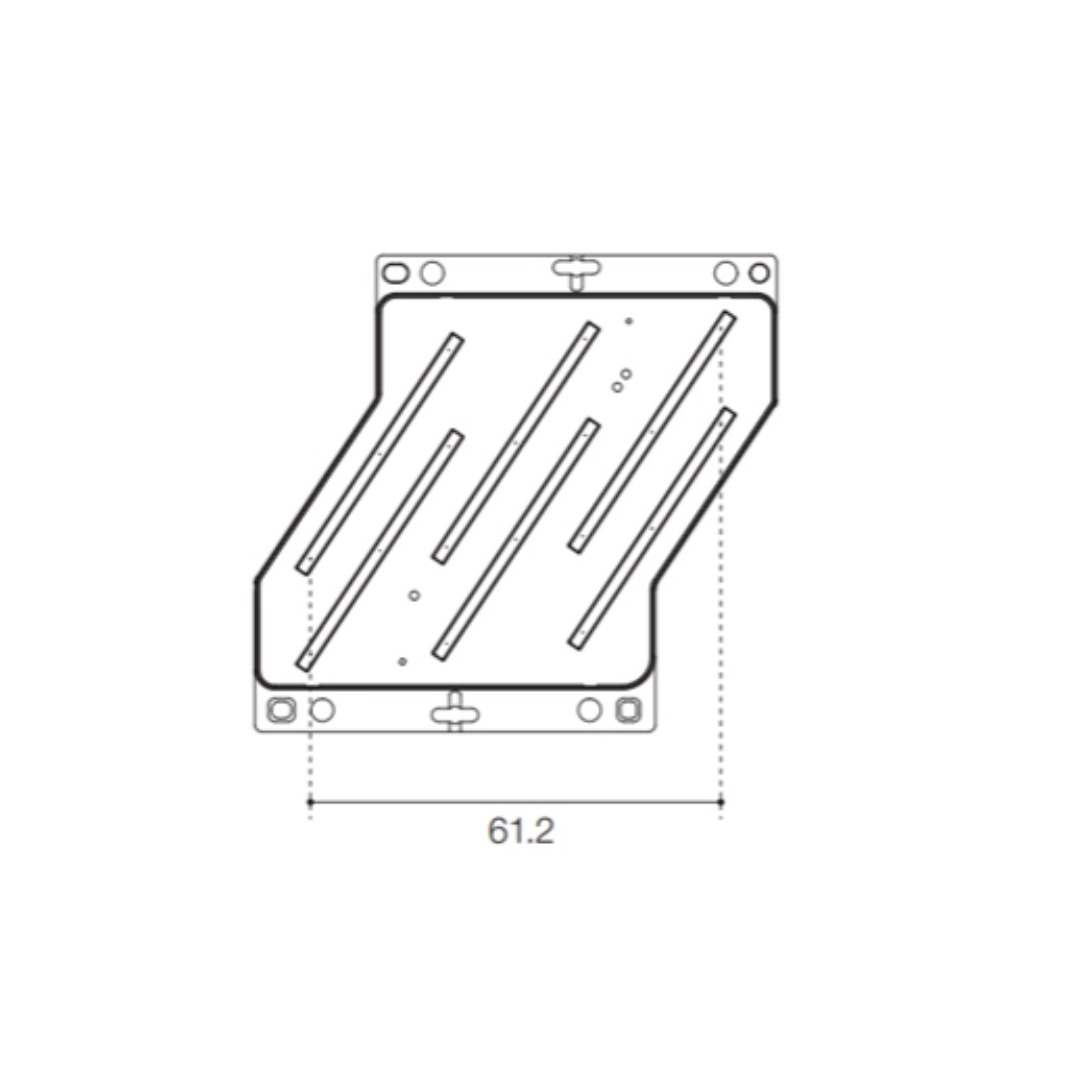

| Effective Print Width | 61.2 mm (2.41 inches) |
| Jetting Frequency | 2-level grayscale: 3.0 pl (63.0 kHz) 3-level grayscale: 3.0, 5.5 pl (63.0 kHz) |
