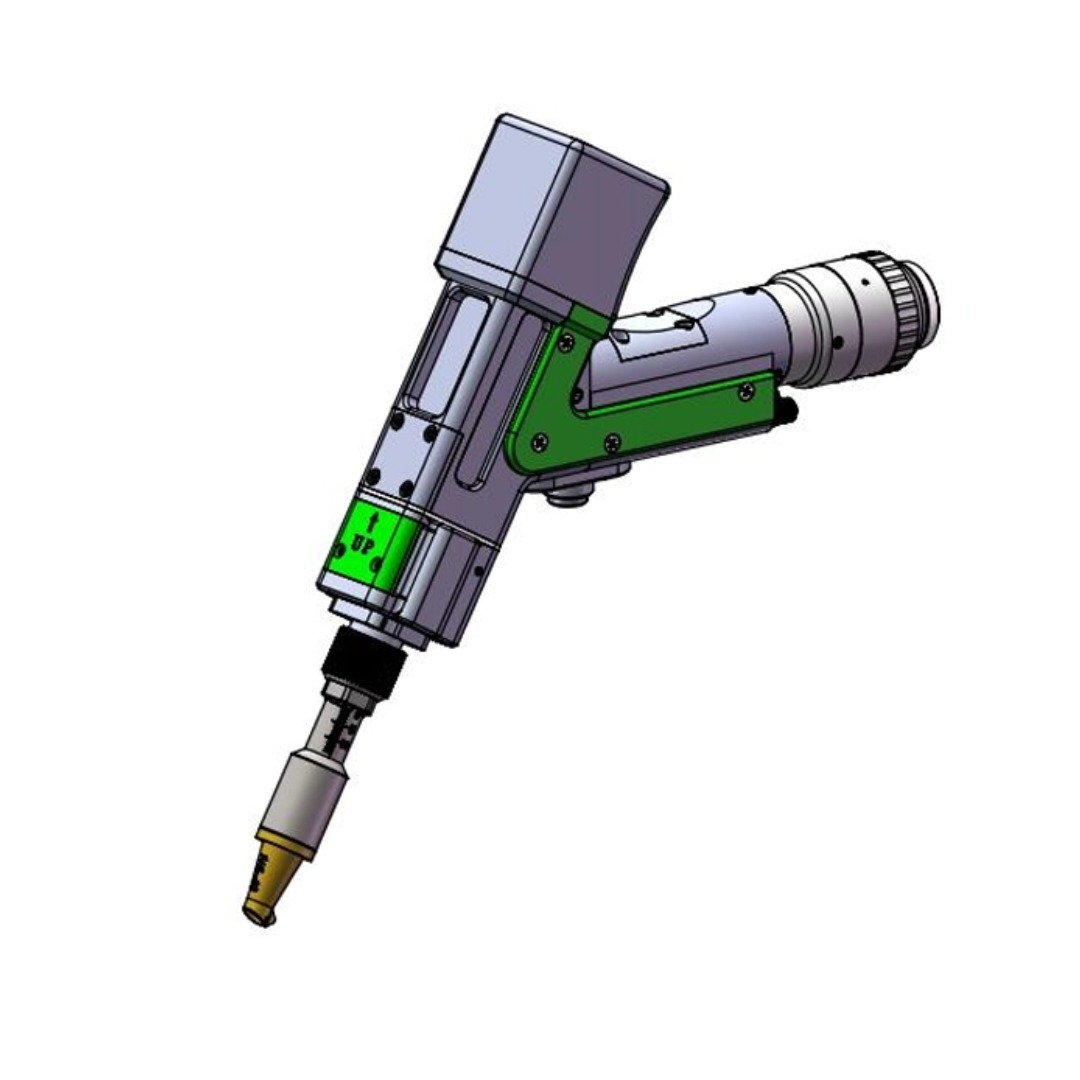

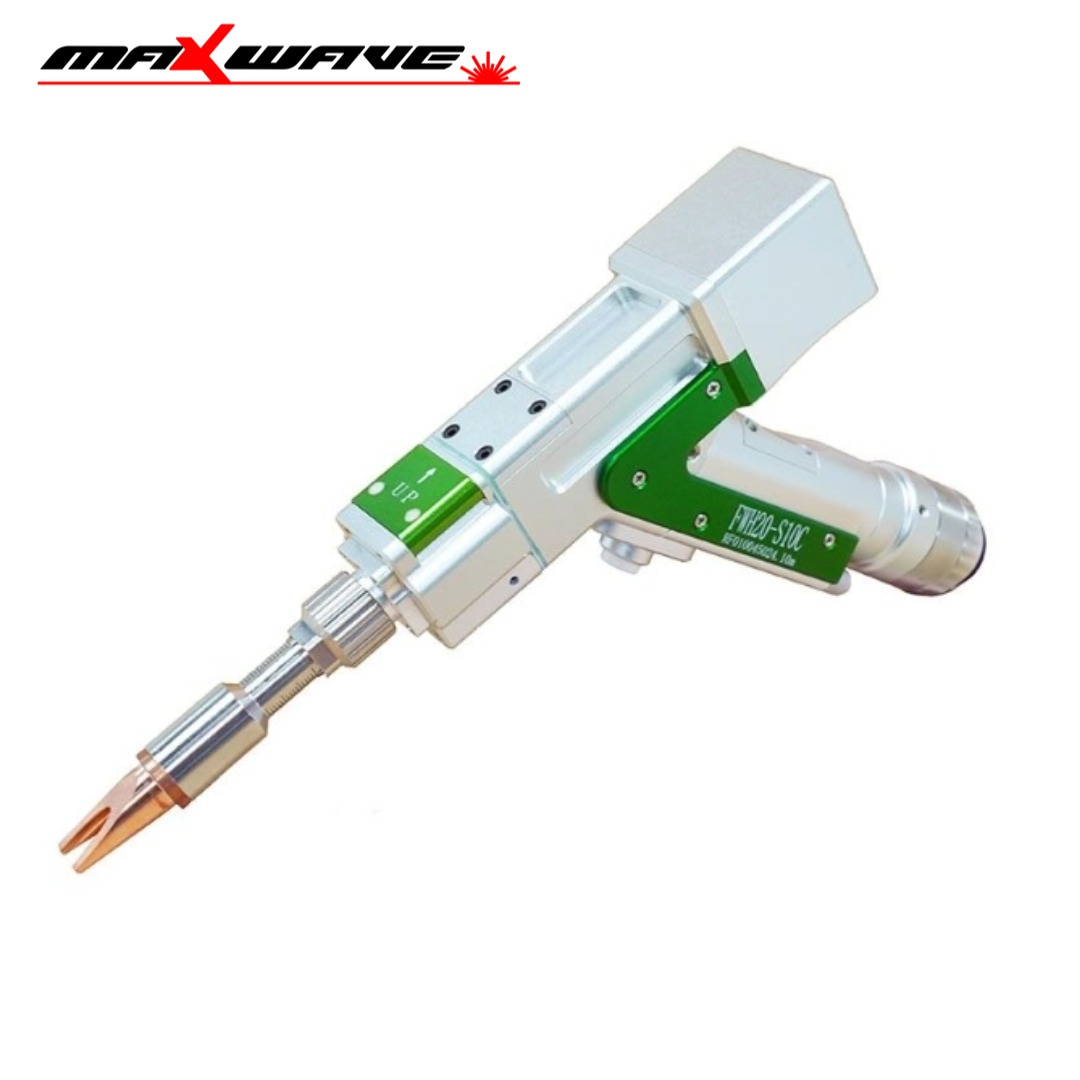

Relfar FWH20-S10C Laser Welding Head
Wavelength Range：1080nm
Weight:：0.72Kg
Rated Power：3KW
-
Trusted by over 1,000 customers worldwide
-
1–3 year extended warranty coverage
-
Certified to meet international quality standards
-
100% quality inspection before shipment
The FWH20-S10C laser welding head is an intelligent single-pendulum handheld laser welding head designed for industrial applications. It delivers stable welding performance with adjustable focus and spot size, ideal for precision welding in manufacturing and assembly.
| Parameter | Specification |
|---|---|
| Product Name | FWH20-S10C Laser Welding Head |
| Model | FWH20-S10C-V4 |
| Fiber Interface | QBH |
| Wavelength Range | 1080nm |
| Rated Power | ≤3000W |
| Collimation Focal Length | 50mm |
| Focusing Focal Length | 150mm |
| Focal Point Adjustment Range | -10mm ~ +10mm |
| Spot Size Adjustment Range | 0 ~ 5mm |
| Auxiliary Air Pressure | ≤1MPa |
| Weight | 0.72kg |
Laser Source Repair & Maintenance Service
Our experienced engineers diagnose and repair common laser issues, including power attenuation, instability, optical component damage, and cooling-related failures—helping you restore performance and minimize downtime.
