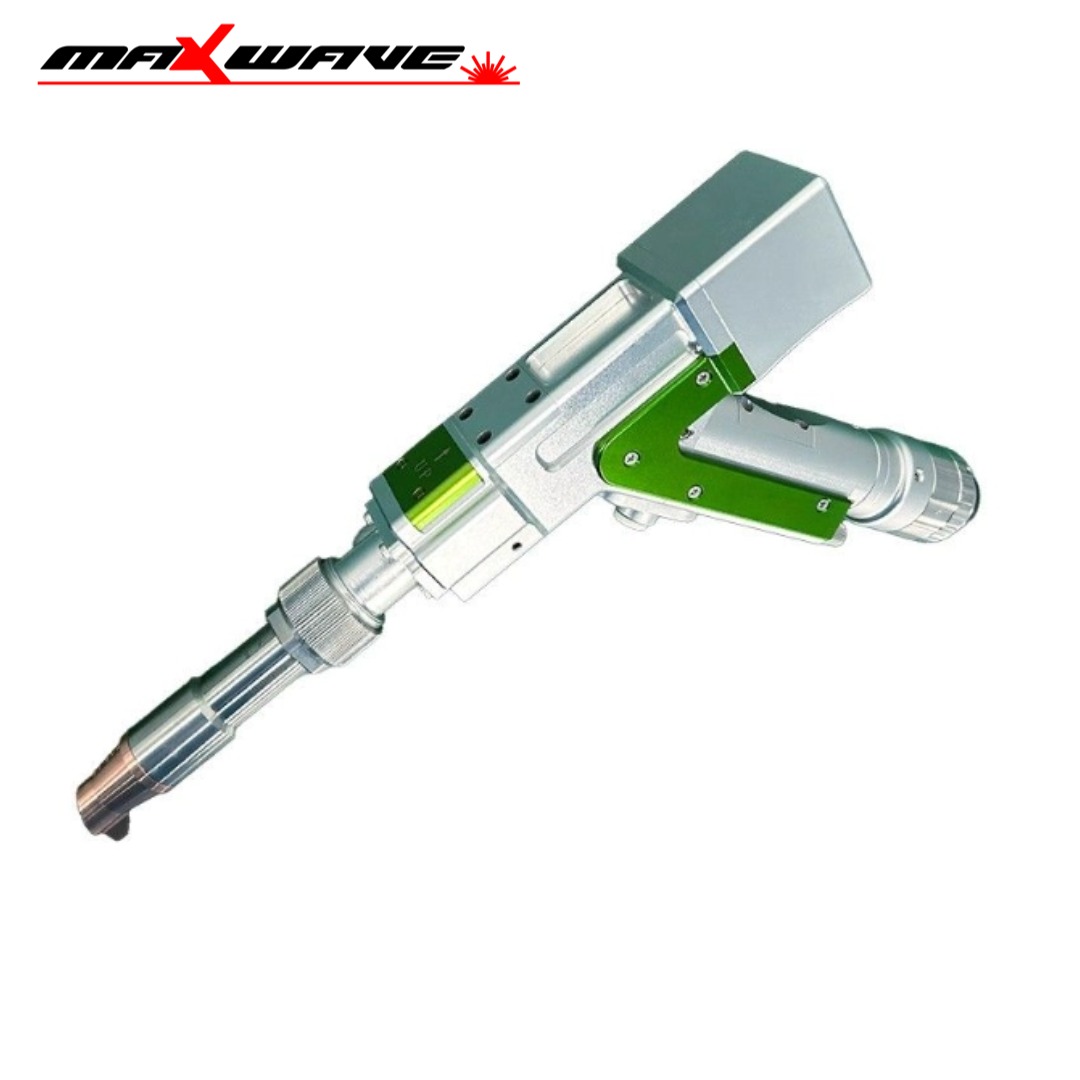

FWH20-S40C Laser Welding Head

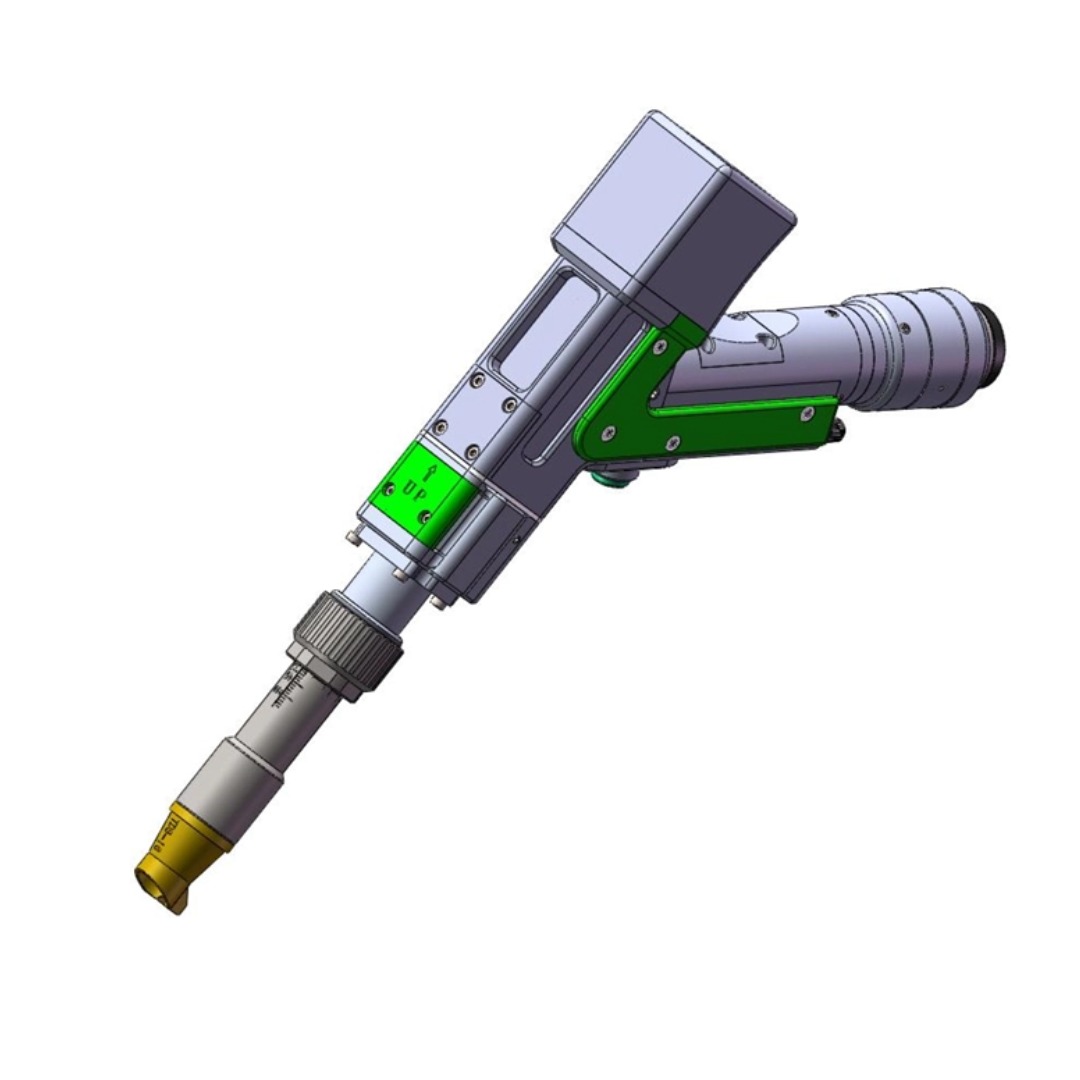

FWH20-S40C Laser Welding Head - Image 2

FWH20-S40C Laser Welding Head

Functional applications include switching between welding, cutting, cleaning, and weld seam cleaning.

Equipped with an intelligent protection system, it supports mobile app and PC monitoring, providing real-time feedback on working status.

High-threshold optical components ensure superior welding performance.

Multiple safety locks guarantee high security.

A full-body water-cooling design offers long-lasting stability.

Ergonomically designed for a comfortable grip and easy handling.

Category: Tags: , Brand:

Description

The FWH20-S40C is an intelligent single-pendulum handheld laser welding head designed for industrial welding applications. It delivers versatile and precise welding with an expanded spot size adjustment range, ideal for diverse metal fabrication and assembly tasks.

Parameter Specification
Product Name Intelligent Single-Pendulum Handheld Welding Head
Model FWH20-S40C
Fiber Interface QBH
Wavelength Range 1070±20nm
Rated Power ≤3000W
Collimation Focal Length 50mm
Focusing Focal Length 200mm
Focal Point Adjustment Range -10mm ~ +10mm
Spot Size Adjustment Range 0 ~ 12mm
Auxiliary Air Pressure ≤1MPa
Weight 0.72Kg
