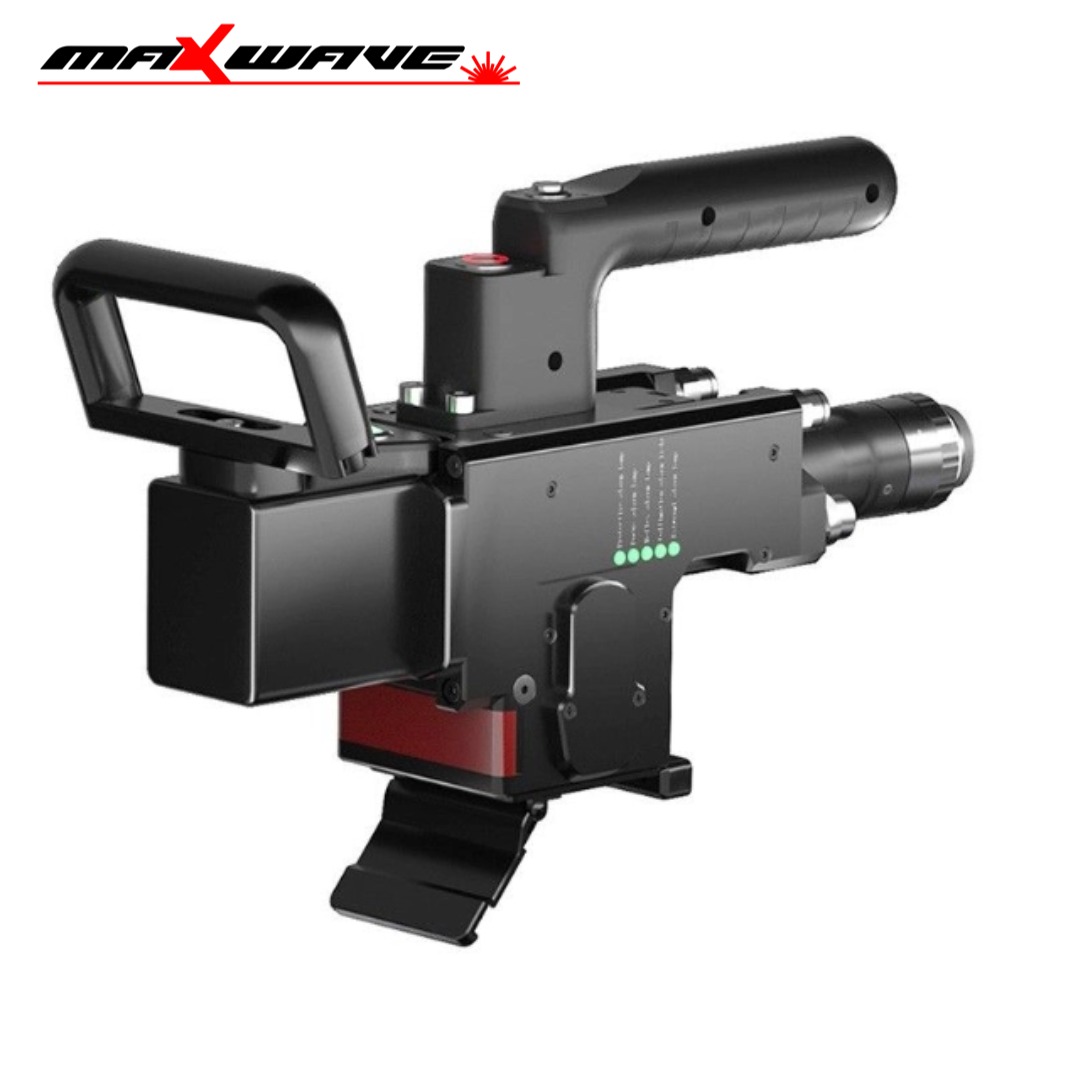

FWH60-C30A Laser Cleaning Head

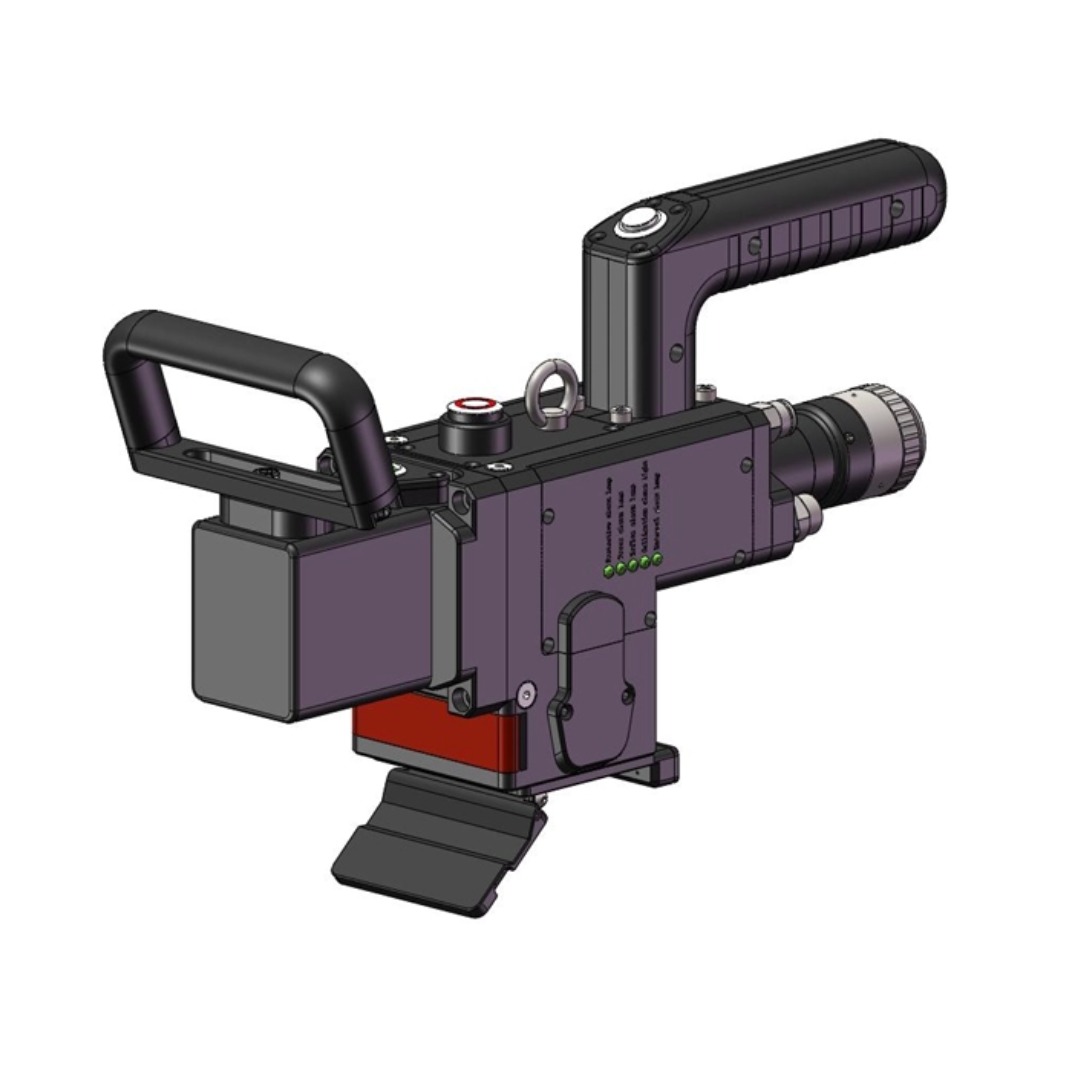

FWH60-C30A Laser Cleaning Head - Image 2

FWH60-C30A Laser Cleaning Head

Functional applications include oxide layer and rust removal, as well as coating stripping.

Equipped with an intelligent protection system, it supports mobile app and PC monitoring, providing real-time feedback on working status.

High-threshold optical components deliver enhanced cleaning performance.

Multiple safety locks ensure high security.

A full-body water-cooling design guarantees lasting stability.

Ergonomically designed for a comfortable grip and easy handling.

Supports one-touch connectivity via mobile app.

Category: Tags: , Brand:

Description

The FWH60-C30A is a smart handheld high-power continuous laser cleaning head designed for industrial surface treatment. It delivers efficient wide-range cleaning with adjustable scanning width, ideal for large-area rust, paint, and coating removal.

Parameter Specification
Product Name Smart Handheld Cleaning Head
Model FWH60-C30A
Fiber Interface QBH
Wavelength Range 1070±20nm
Rated Power ≤6KW
Collimation Focal Length 75mm
Focusing Focal Length 1500mm
Scanning Width 10–500mm
Scanning Speed 40000mm/s
Auxiliary Air Pressure ≥0.5–0.8Mpa
Effective Clear Aperture Ø20
Weight 2.2Kg
