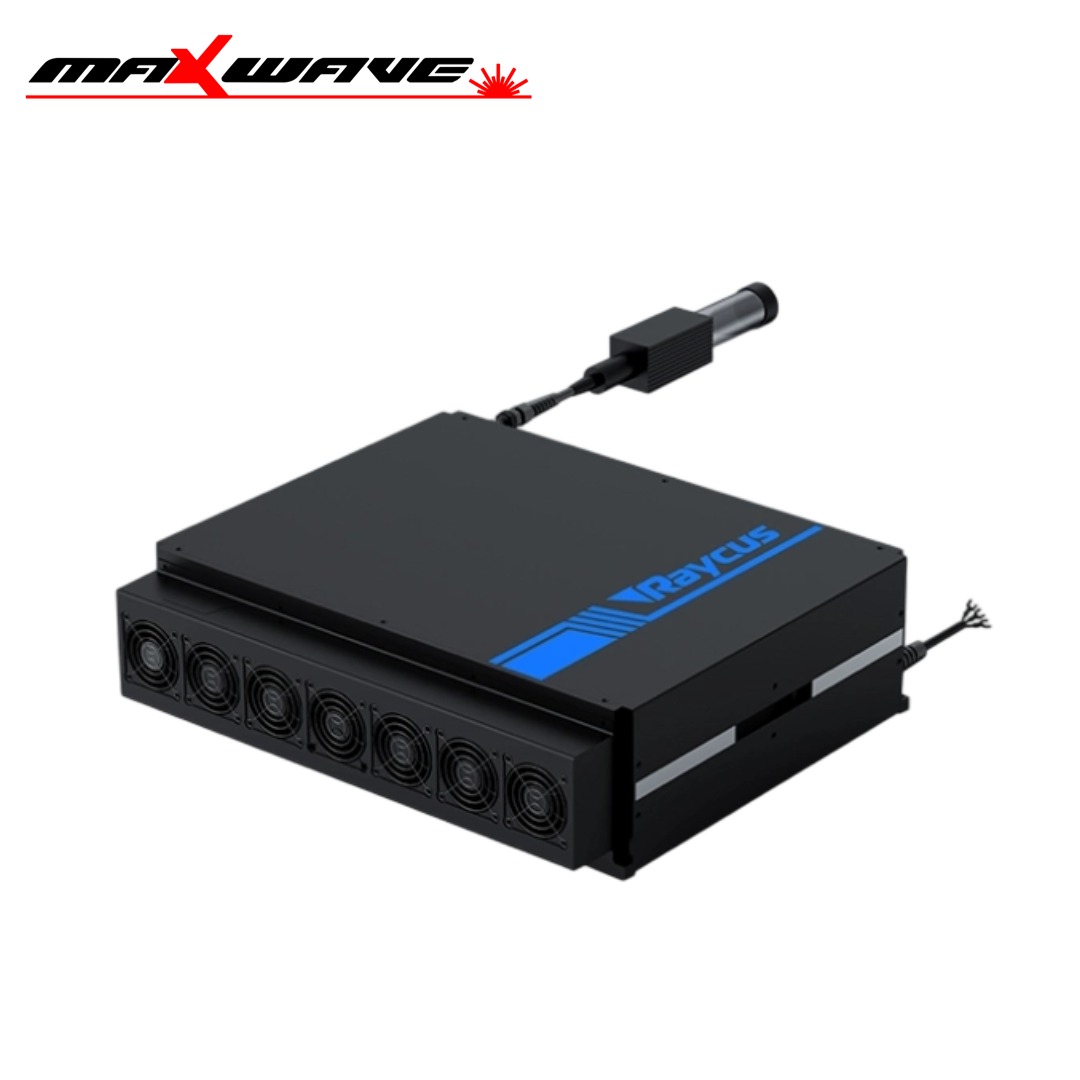

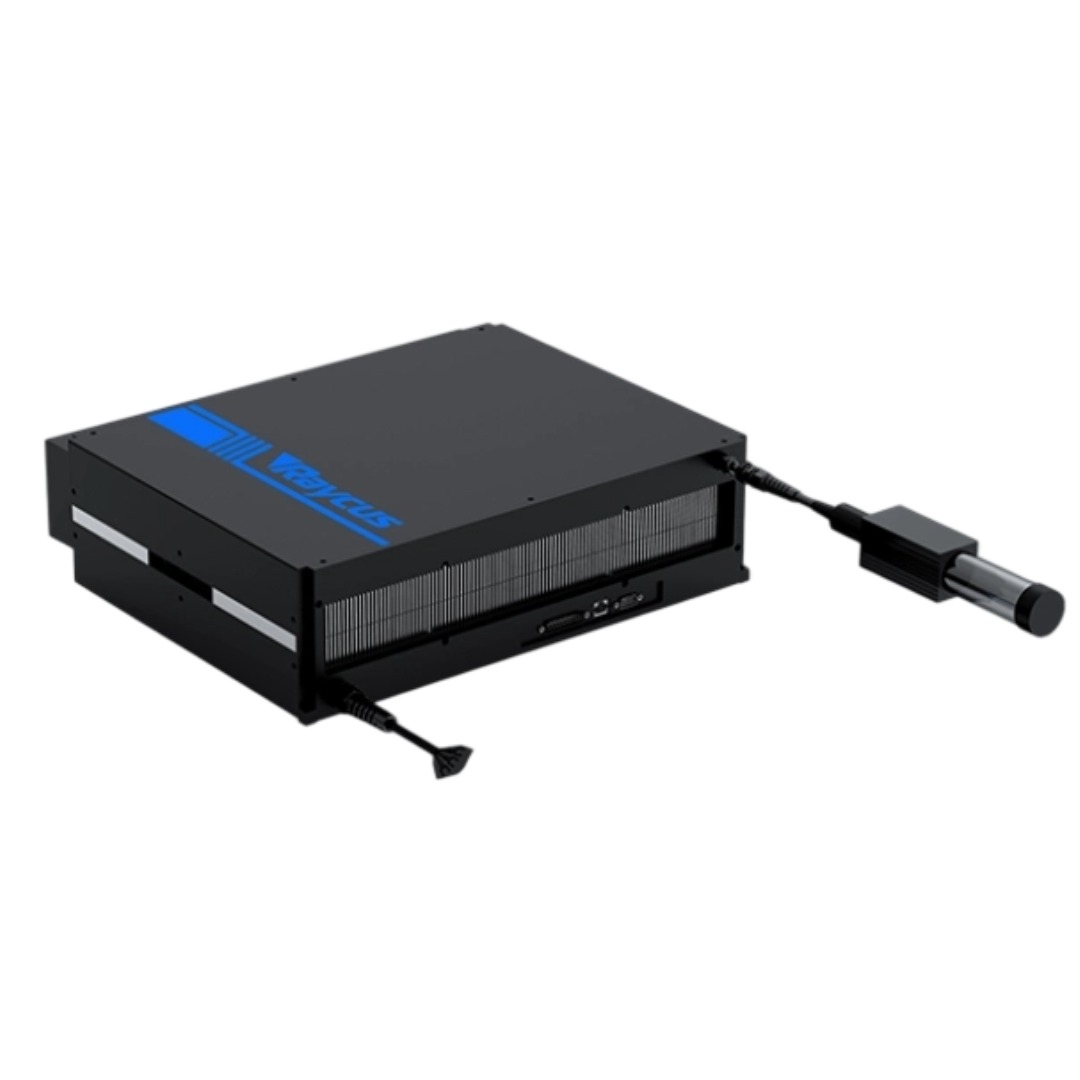

Raycus R-P300MX Laser Source
Output Power: 300W
Wavelength: 1064 nm
Cooling Method: Air-cooled
-
Trusted by over 1,000 customers worldwide
-
1–3 year extended warranty coverage
-
Certified to meet international quality standards
-
100% quality inspection before shipment
The R-P300MX Laser Source is a nanosecond pulsed fiber laser designed for high-precision industrial micromachining. It delivers 300W average power with excellent beam quality (BPP<1) and flexible pulse parameters, ideal for ultrafine marking, cutting, and precision surface processing.
| Specification | Typical Value / Range | Unit |
|---|---|---|
| Product Name | R-P300MX Laser Source | - |
| Average Output Power | 300 | W |
| Max. Single Pulse Energy (@350ns, 150kHz) | 2 | mJ |
| Repetition Rate Range | 1 – 4000 | kHz |
| Pulse Width Range | 10 – 350 | ns |
| Beam Quality (BPP) | < 1 | mm·mrad |
| Center Wavelength | 1064 | nm |
| Output Power Stability | ≤ 5 | % |
| Cooling Method | Air-cooled | - |
| Control Interface | Ethernet, RS232, DB25 | - |
| Input Voltage | 48 | VDC |
