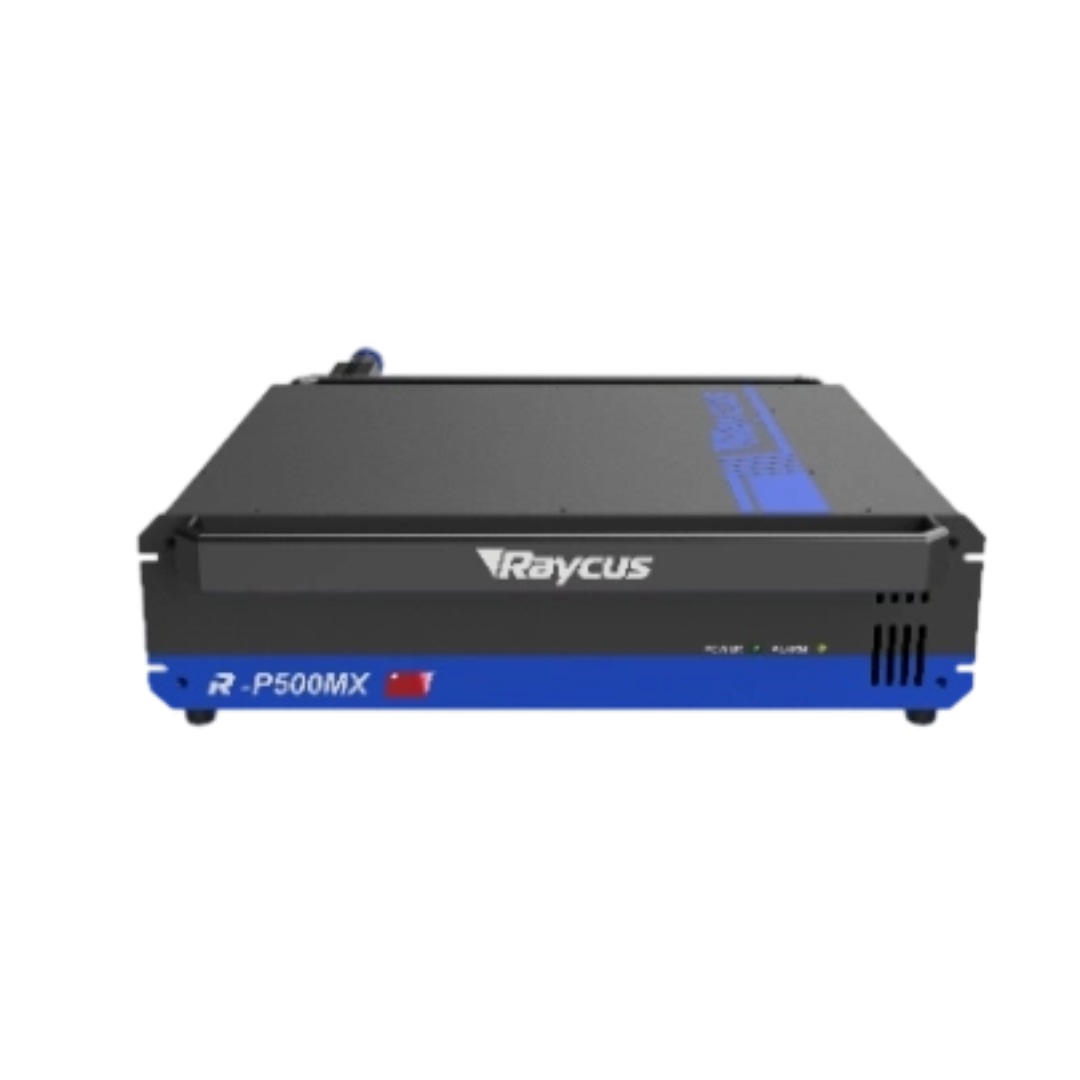

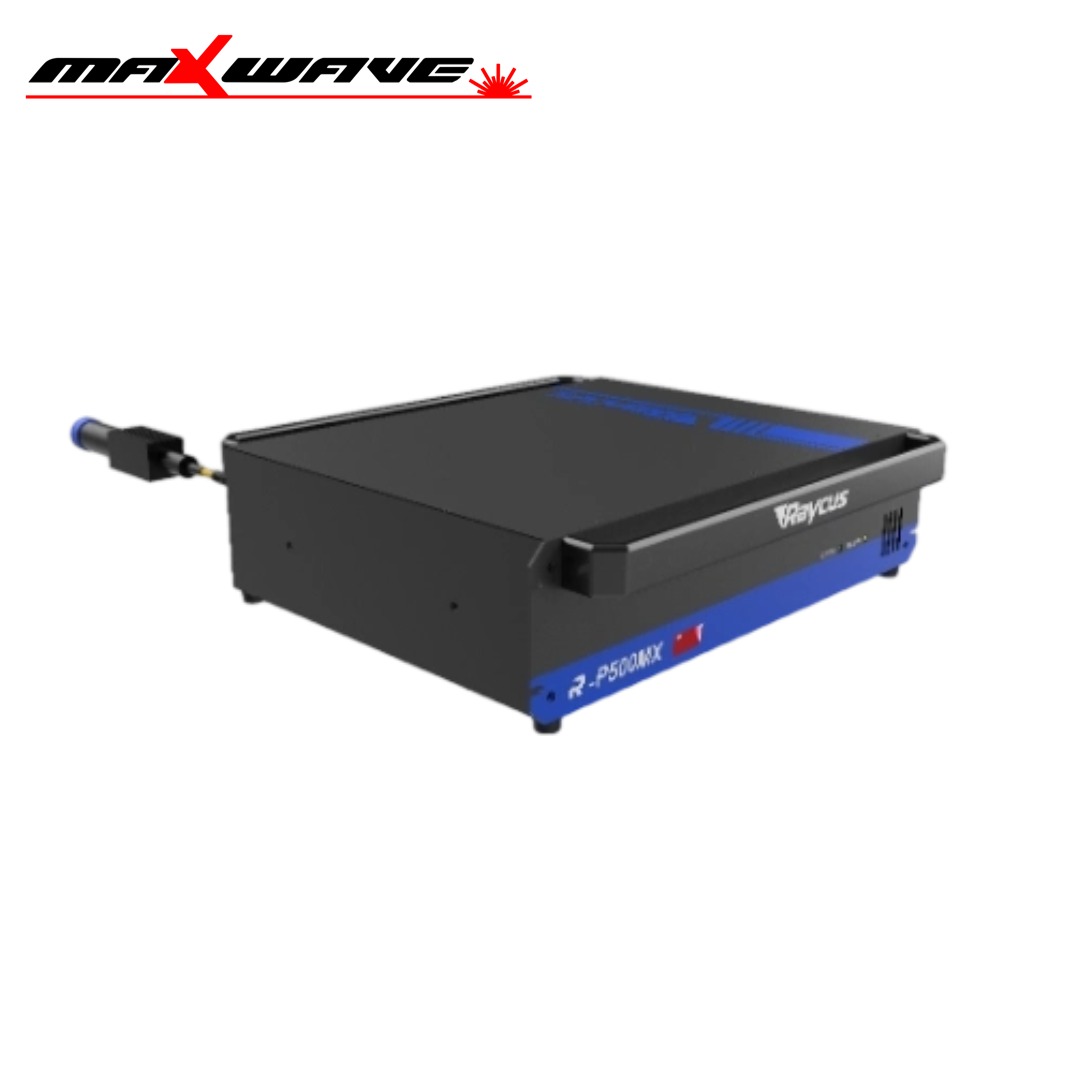

Raycus R-P500MX Laser Source
Output Power: 500W
Wavelength: 1064 nm
Supply Voltage: 220 VAC
-
Trusted by over 1,000 customers worldwide
-
1–3 year extended warranty coverage
-
Certified to meet international quality standards
-
100% quality inspection before shipment
The R-P500MX Laser Source is a versatile nanosecond pulsed fiber laser designed for precision industrial micromachining. It delivers 500W average power with selectable pulse widths and a high repetition rate up to 4000 kHz, ideal for demanding applications such as fine marking, cutting, and semiconductor processing.
| Specification | Typical Value / Range | Unit |
|---|---|---|
| Product Name | R-P500MX Laser Source | - |
| Average Output Power | 500 | W |
| Operating Mode | Pulsed / Continuous | - |
| Max. Single Pulse Energy | 2 | mJ |
| Repetition Rate Range | 1 – 4000 | kHz |
| Pulse Width (Options) | 20, 30, 60, 100, 150, 200, 250, 350, 500 | ns |
| Beam Quality M² | < 1.8 | - |
| Output Power Instability | < 3 | % |
| Center Wavelength | 1064 | nm |
| Input Power Supply | 220 | VAC |
| Cooling Method | Water-cooled | - |
