I often find myself wondering how today’s welding machines can be so compact, yet so durable and energy-efficient. I truly believe inverter welding technology represents a major leap forward. It simplifies heavy tasks, reduces electricity costs, and helps keep workspaces tidy.
To me, these machines are lighter, more flexible, and capable of handling a wide range of welding jobs—whether in a workshop or out on a construction site. That said, I still think there’s much more to discover about them. The way this technology continues to evolve and expand its applications is truly exciting.
What is an Inverter Welding Machine
In my view, an inverter welding machine is a smart electronic tool for welding. It takes standard AC home power and turns it into steady DC power using special inverter technology. Old-style welding machines used heavy transformers. I find inverter welders use modern electronic circuits. This gives you better control and uses less energy.
How Inverter Technology Powers Welding
Electronic Parts: I see modern inverter laser welding machines use MOSFET and IGBT parts. First, MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) change AC power into high-frequency AC. Then, IGBTs (Insulated Gate Bipolar Transistors) switch and control this high-frequency AC effectively. Because of IGBTs, these machines handle power changes well. I think this makes them dependable even if your main power or generator isn’t stable.
Changing the Output: The machine takes 240V AC power and changes it to a useful 20V DC output. This gives you a stable current. You get clean and even welds from this stable current. I know this lets you weld different metals like stainless steel, aluminum, and other non-iron metals.
How Inverter Technology Works in Welding Machines
From my experience, inverter welding machines use smart electronics to control power accurately and efficiently. Here’s a step-by-step look at how I understand this technology works:
High-Frequency Power Conversion
Frequency Transformation: First, the inverter welding machine takes normal AC power (50–60 Hz from the wall). It then turns it into high-frequency AC, somewhere between 20,000 and 100,000 Hz.
Key Components: Special parts called MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) handle this. They switch the current quickly to create the higher frequency.
Creating Stable DC Output
After boosting the AC power’s frequency, the machine uses diodes. These convert (rectify) it into smooth DC power. I find this stable DC power lets you make exact welding adjustments. You can set the voltage, current, and heat just right for different materials.
Improved Energy Efficiency and Duty Cycle
Energy Efficiency: In my work, I’ve seen inverter welding machine save energy. It’s up to 25% more efficient than old transformer welders.
Duty Cycle: I also find these machines can often run longer before needing to cool down. This is thanks to their improved design.
From my perspective, inverter welding machine boosts the input frequency. It also uses smaller transformers and electronic controls. I recommend these welders because they are lighter and easy to carry. They save energy and give you great control. This makes them perfect for today’s welding tasks.
Advantages of Inverter Welding Machines
Compact and Lightweight Design
From my experience, inverter welders are way smaller and lighter than the old transformer types. Imagine this: an inverter can weigh less than 5kg, like a small bag. Yet, it packs the same punch as a hefty 50kg transformer model. This small size makes them very portable. I find it simple to carry them between jobs or just move them around my workshop.
Superior Energy Efficiency
Modern inverter welding machines use energy well, hitting 80% to 90% efficiency. That’s much better than the 50% I used to see with older welders. This means you use much less power for the same amount of welding. For instance: – Look at the Hobart Ironman 240 (transformer): it takes 50A/240V input for 200A output. – Now, the Eastwood MIG 250 (inverter): it needs just 46A/240V input, but gives you a stronger 250A output. Over time, I’ve seen this better efficiency really cut down my energy bills.
Enhanced Welding Performance and Digital Functions

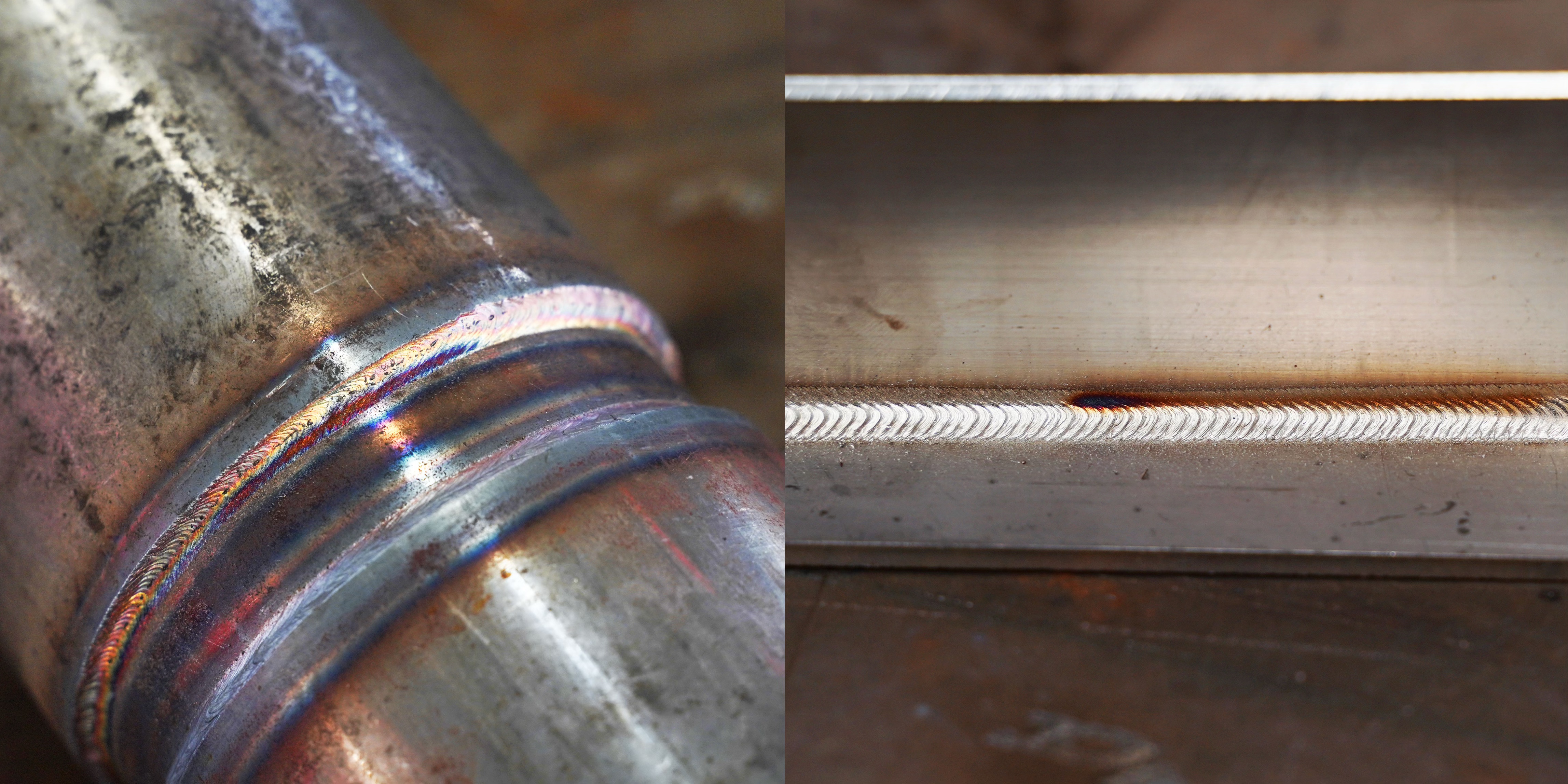

I really like how inverter welding machines give smooth, steady arcs. This results in cleaner welds that are easier to control, with less mess from spatter. They come with useful features like: – High open circuit voltage for easy arc starts – Hot Start and Anti-Stick functions – Adjustable Arc-Force control – Infinite amperage adjustment for exact control – Digital displays to fine-tune your arc settings
Versatility and Adaptability
I appreciate that these welders work with many metals. You can use them on mild steel, stainless steel, aluminum, and different alloys. Many inverter welding machine models are multi-process capable. This lets you switch between MMA, MIG, and TIG welding methods. I find this flexibility great for general repairs and also for more specific fabrication projects.
Higher Duty Cycle for Demanding Projects
In my work, I’ve noticed inverter welding machines can keep welding longer before they need to cool down. This high duty cycle is perfect for big jobs or tasks you can’t stop often. It boosts how much work you get done and cuts down on waiting time.
Power Source Flexibility
Many inverter welders run well on standard house power, like 110V or 120V outlets. Take the Eastwood MIG 250. It can give a strong 140A weld even when plugged into a regular 120V/20A home outlet.
Specialized Welding Capabilities
I find inverter welding machines are excellent for careful, exact work. They handle thin sheet metal or tubes down to 1.6mm very well. This is a huge plus compared to older stick welders. Those often struggle or just can’t handle thin materials.
Economic Advantages
Inverter welders might cost more initially, but I believe the investment is worth it over time because you get: – Lower electricity bills – Fewer mistakes to fix, because the weld quality is steady and high – Equipment lasts longer due to tough electronic parts – Reduced maintenance and servicing costs
Inverter welders give you great portability and energy savings. They perform better in welding and save money long-term. I think they handle more types of jobs with better accuracy and flexibility. This makes them a smart choice whether you’re a pro or a hobbyist.
Disadvantages of Inverter Welding Machines
In my experience, while inverter welding machines have benefits, you should know about some key downsides:
Higher Maintenance and Repair Costs
- Tricky Design: I notice inverter machines use things like MOSFETs and IGBTs. This newer circuitry makes building them, setting them up, and fixing them harder than basic transformer welders.
- Hard to Fix: Based on my experience, when an inverter welder fails, fixing it needs special skills and tools. You often have to replace whole circuit boards, not just simple components.
- Cost Effect: I’ve seen repair bills that can be double those for transformer types. The newer electronics cost more. Getting parts or replacements can also take longer, which means more downtime.
Sensitivity to Dust, Dirt, and Moisture
I find inverter welders react badly to dust, dirt, and damp air. These things can make the inverter boards and inside parts fail. For instance, I’ve observed frequent breakdowns in busy, dirty, or damp shops. This causes repeated stops in work.
Higher Upfront Price
The newer inverter technology means these welders cost more upfront than transformer models. I think this higher price can be too much for some small shops or hobby welders with limited money.
Limitations in Harsh Environments
I’ve noticed inverter welders struggle outdoors. They also don’t perform well in heavy industrial settings where you can’t control the environment well. In my opinion, they aren’t the best pick for gouging. I also wouldn’t choose them for places with lots of dust, dirt, or big temperature changes.
Inverter welders are efficient and easy to move. But, based on my observations, they are sensitive to the environment, need more maintenance, don’t last as long, and cost more to fix. I think you should consider these downsides carefully before picking one for specific welding tasks.
Applications of Inverter Welding Machines
Inverter welding machines are widely used across multiple industries due to their portability, energy efficiency, and precise control. Common applications include:
Automotive Repairs – Ideal for bodywork, exhaust systems, and frame welding.
Construction Sites – Used for steel structure assembly, reinforcement bars, and on-site installations.
Manufacturing – Suitable for fabricating metal components, machinery, and custom metalwork.
Home & DIY Projects – Compact models are perfect for small repairs and hobby welding.
Shipbuilding & Aerospace – Enables high-precision welding of complex metal parts with minimal distortion.
Pipeline & Maintenance Work – Offers strong, reliable welds in demanding environments.
Their ability to deliver stable output even with fluctuating power supply makes inverter welders a top choice for professionals and hobbyists alike.
Summary
I’ve seen how inverter welders can be used in many ways. From my experience, I think they show how much welding has improved. They offer a good mix of power and accuracy. Even with some downsides, I find them essential for today’s metalworking jobs. These machines might need more attention than older types.
However, I feel they work so well and give such better results that the cost is usually worth it. Welding tech keeps getting better. I expect inverter machines will become more dependable and easier for us to get. This helps pros like me do top-notch work in many different fields. For more details about welding machine or to get a quote, contact us today!
