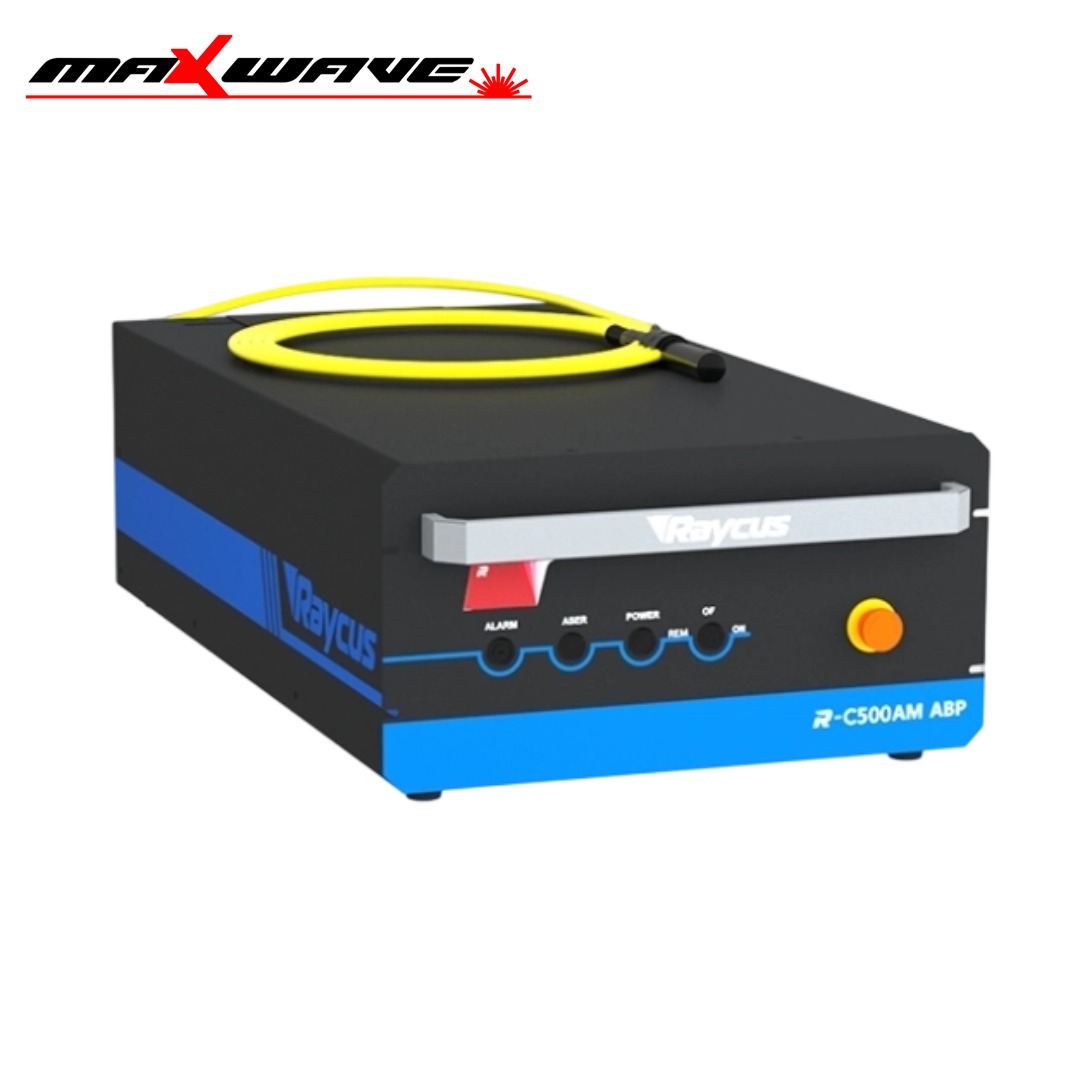

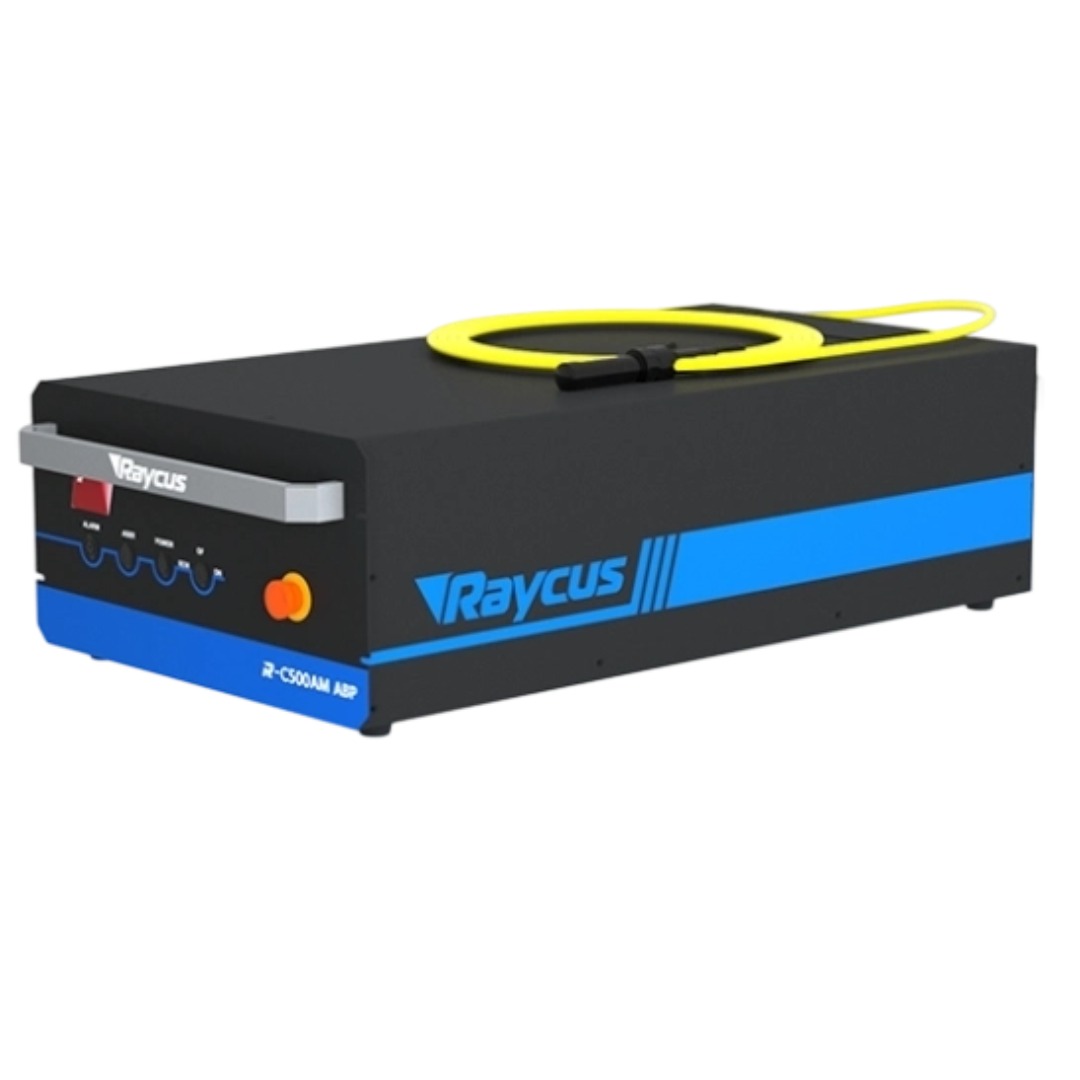

Raycus R-C500AM ABP Laser Source
Output Power: 500W
Wavelength: 1080 nm
Cooling Method: Water-cooled
-
Trusted by over 1,000 customers worldwide
-
1–3 year extended warranty coverage
-
Certified to meet international quality standards
-
100% quality inspection before shipment
The R-C500AM ABP Laser Source is a high-modulation fiber laser designed for dynamic industrial processing. It delivers 500W output with an ultra-wide frequency range up to 20 kHz and multi-interface control, ideal for precision welding, cutting, and adaptive manufacturing applications.
| Specification | Typical Value / Range | Unit |
|---|---|---|
| Product Name | R-C500AM ABP Laser Source | - |
| Operating Mode | Continuous / Modulated | - |
| Total Output Power | 500 | W |
| Center Wavelength | 1080 | nm |
| Modulation Frequency Range | 0.05 – 20 | MHz |
| Power Adjustment Range | 10 – 100 | % |
| Output Power Stability | ± 1.5 | % |
| Output Method | QBH | - |
| Control Interface | RS-232 / AD / Ethernet | - |
| Cooling Method | Water-cooled | - |
| Dimensions (W×H×D) | 410 × 150 × 770 | mm |
