In the high-stakes worlds of aerospace and automotive manufacturing, precision welding is not just a process—it is a critical factor that determines product safety, structural integrity, and business success. A single flawed weld on a titanium aircraft fuselage frame can lead to grounded fleets, expensive rework, and lost contracts. Similarly, weak connections in electric vehicle (EV) battery packs can cause thermal risks, shortened service life, and damage to brand reputation. Under such demanding conditions, traditional welding methods like TIG, MIG, and even electron beam welding (EBW) often fall short of modern industrial requirements. This is where Coherent high-power fiber laser welders stand out as the industry benchmark, offering unmatched precision, speed, and reliability for the most challenging applications.
Core Advantages of the Coherent HighLight FL Platform
The Coherent HighLight FL series is a comprehensive fiber laser welding platform designed to cover the full spectrum of industrial joining needs, from delicate micro-joining to heavy-duty structural penetration welding. With a power range spanning 1kW to 10kW for standard models and up to 20kW for the advanced ARM series, this platform delivers consistent performance across diverse materials, thicknesses, and production scenarios.
Key performance parameters solidify its leading position in the market:
-
Spot diameter: As small as 0.1mm at 3kW and 0.15mm at 5kW, fully meeting the 100-micron precision standards required by aerospace components.
-
Welding speed: Reaches 800–2400 mm/min at 2kW, while the 6kW model operates up to 10 times faster than conventional TIG welding.
-
Material adaptability: Handles materials from 0.5mm-thin aerospace aluminum panels to 10mm-thick stainless steel and aluminum structures.
-
Positioning accuracy: ±0.03mm at full power, with an ultra-narrow heat-affected zone (HAZ) and nearly zero post-weld distortion.
-
Stability: Water-cooled construction supports uninterrupted full-shift production, with power stability controlled within ±1% to ensure consistent penetration depth along entire weld seams.
These features make the HighLight FL series more than just welding equipment—it is a complete production solution that reduces defects, shortens cycle times, and improves overall operational efficiency.
ARM Technology: The Game-Changing Innovation of Coherent Laser Welders
The most distinctive feature of Coherent’s high-power fiber laser welders is its patented Adjustable Ring Mode (ARM) technology, a dual-beam system that redefines weld quality for difficult materials and complex joints. Unlike standard single-beam fiber lasers, ARM delivers two controllable coaxial beams simultaneously:
-
A central single-mode beam provides intense, focused energy for deep keyhole penetration.
-
An outer multi-mode ring beam stabilizes the molten pool, controls heat distribution, and prevents spatter and porosity.
Operators can adjust the power ratio between the center and ring beams in real time, from 1% to 100%, without pausing production. This dynamic flexibility solves long-standing challenges in industrial welding:
-
Spatter reduction: Cuts spatter by 70–80% compared to standard fiber lasers, especially on powertrain and battery components.
-
Aluminum welding: Enables zero-gap welding without filler wire and eliminates hot cracking.
-
Zinc-coated steel: Eliminates porosity caused by zinc vaporization during welding.
-
Copper and highly reflective metals: Features built-in anti-back-reflection protection, enabling stable high-speed welding of busbars and battery interconnects.
The ARM series covers 2kW to 20kW, with the dual-ring ARM FL D variant engineered specifically for gigacasting parts and large EV battery modules, where uniform energy distribution across wide seams is essential.

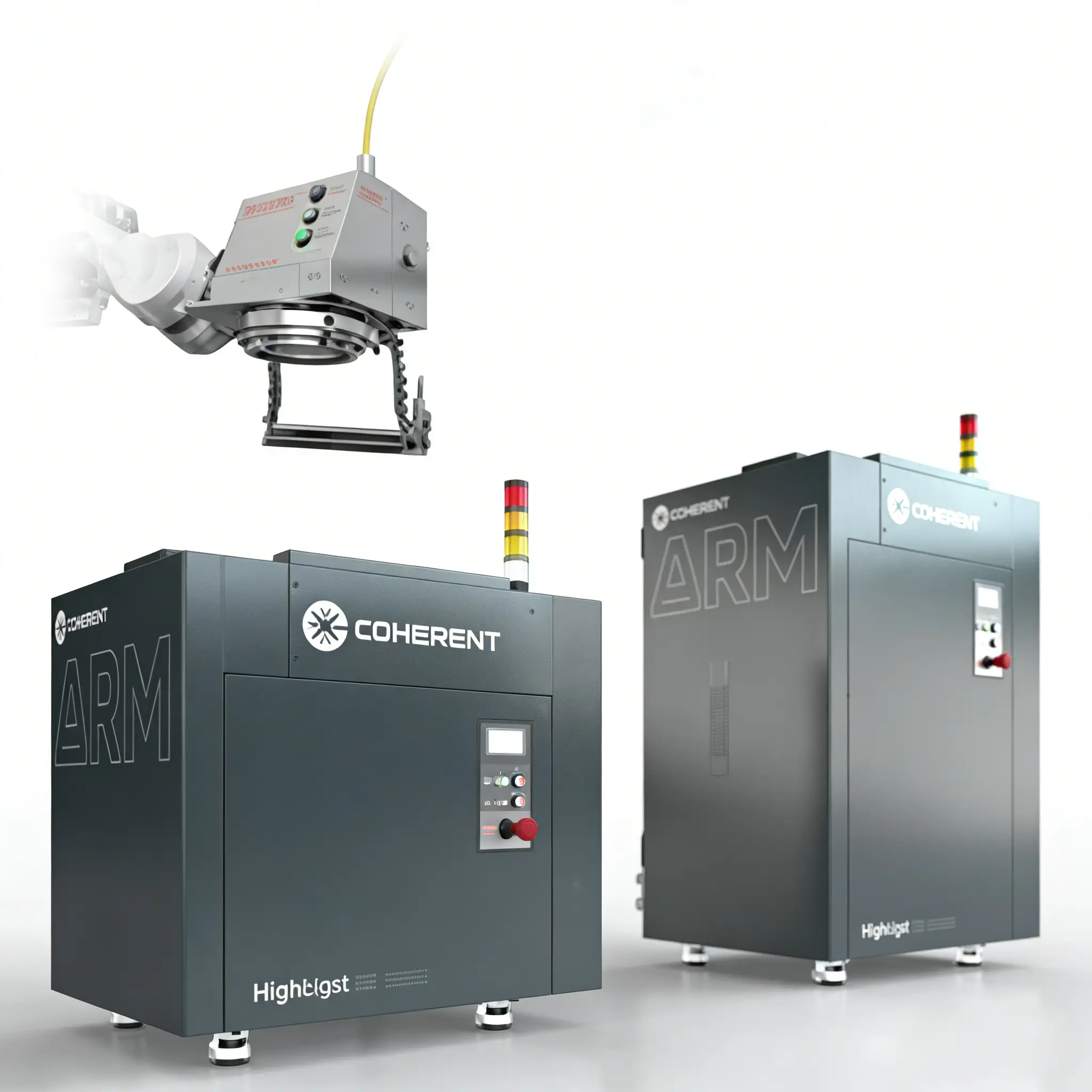

Complete Model Lineup of the HighLight FL Series
Coherent has structured the HighLight FL platform into four specialized series to match different industrial needs, ensuring users invest only in the power and features they require.
1. Standard Series (FL1000–FL10000)
The workhorse of the lineup, offering 1–10kW multi-mode output with a consistent BPP value of ≤2.5 mm·mrad. Ideal for high-volume, single-material seam welding in automotive and general manufacturing.
2. Compact Series (FL-C / FL-CSM)
Features a smaller footprint for integration into tight automated workcells. The single-mode CSM variants are optimized for aerospace aluminum laser welding, delivering the beam quality required for thin-wall, high-precision components.
3. Entry-Level Series (FL500–FL2500)
Starts at 500W, designed for thin-gauge stainless steel fiber laser welding and precision micro-joining where low heat input and precise control are critical.
4. ARM Series
The premium tier with dual-beam technology, recommended for applications involving dissimilar metals, highly reflective materials, and coated steels—core challenges in EV and aerospace manufacturing.
Industrial Applications: Aerospace and Automotive
Aerospace Manufacturing
Aerospace welding demands zero tolerance for defects, with strict certifications such as NADCAP governing every process. Coherent fiber laser welders excel here:
-
Titanium alloy (Ti-6Al-4V): Produces porosity-free, crack-free welds with minimal HAZ, preserving material fatigue life and meeting aerospace structural standards.
-
Aluminum-lithium alloy panels: Delivers precise control over penetration depth, preventing distortion and grain growth in thin, heat-sensitive skin panels and engine nacelle components.
Automotive and EV Manufacturing
The global market for laser welding in EV systems reached $1.62 billion in 2024, driven by the need for reliable battery and structural joining:
-

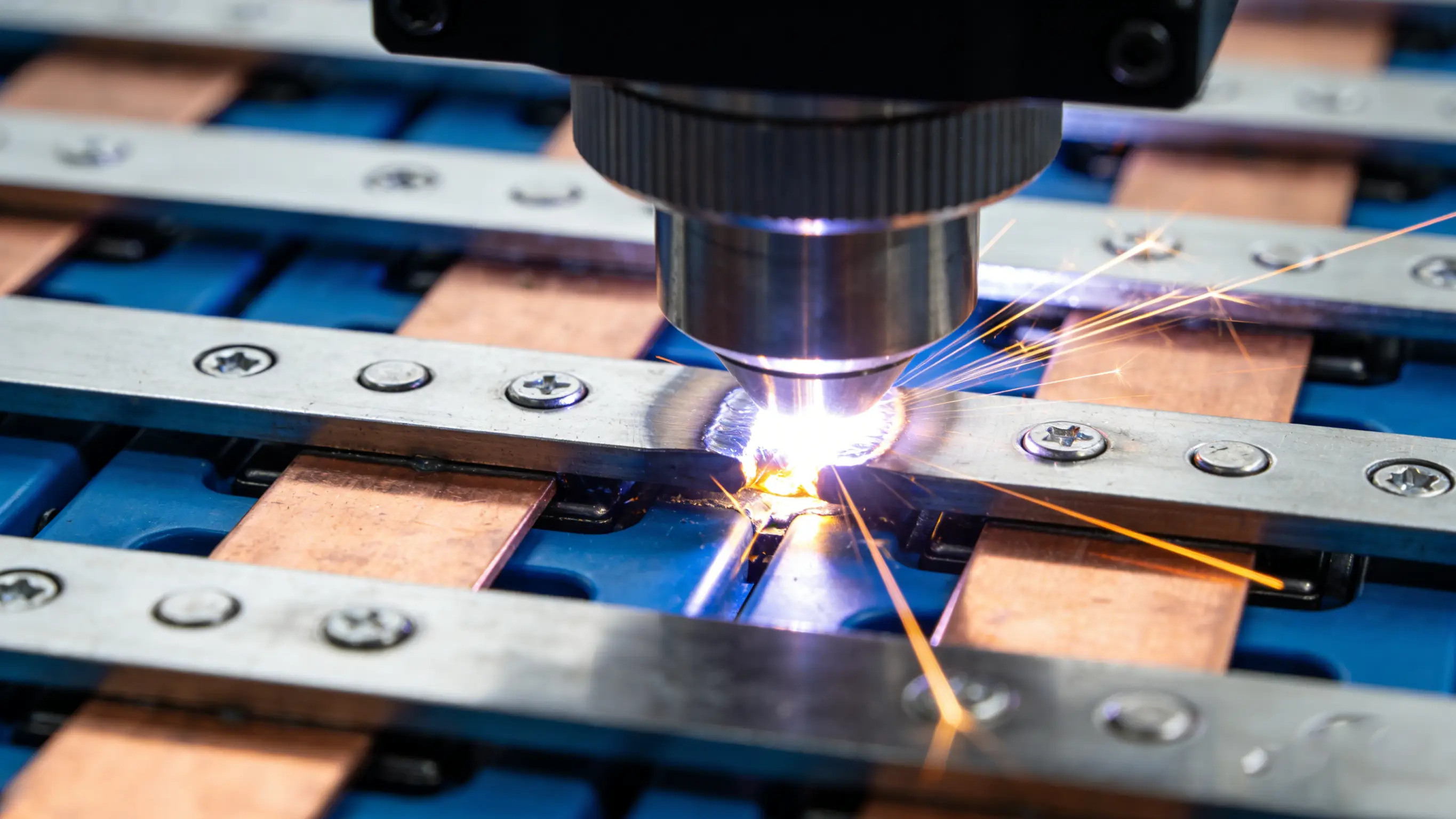

EV battery packs: Enables high-speed copper-aluminum busbar welding at up to 500mm/s, with hundreds of consistent welds per module to ensure safety and performance.
-

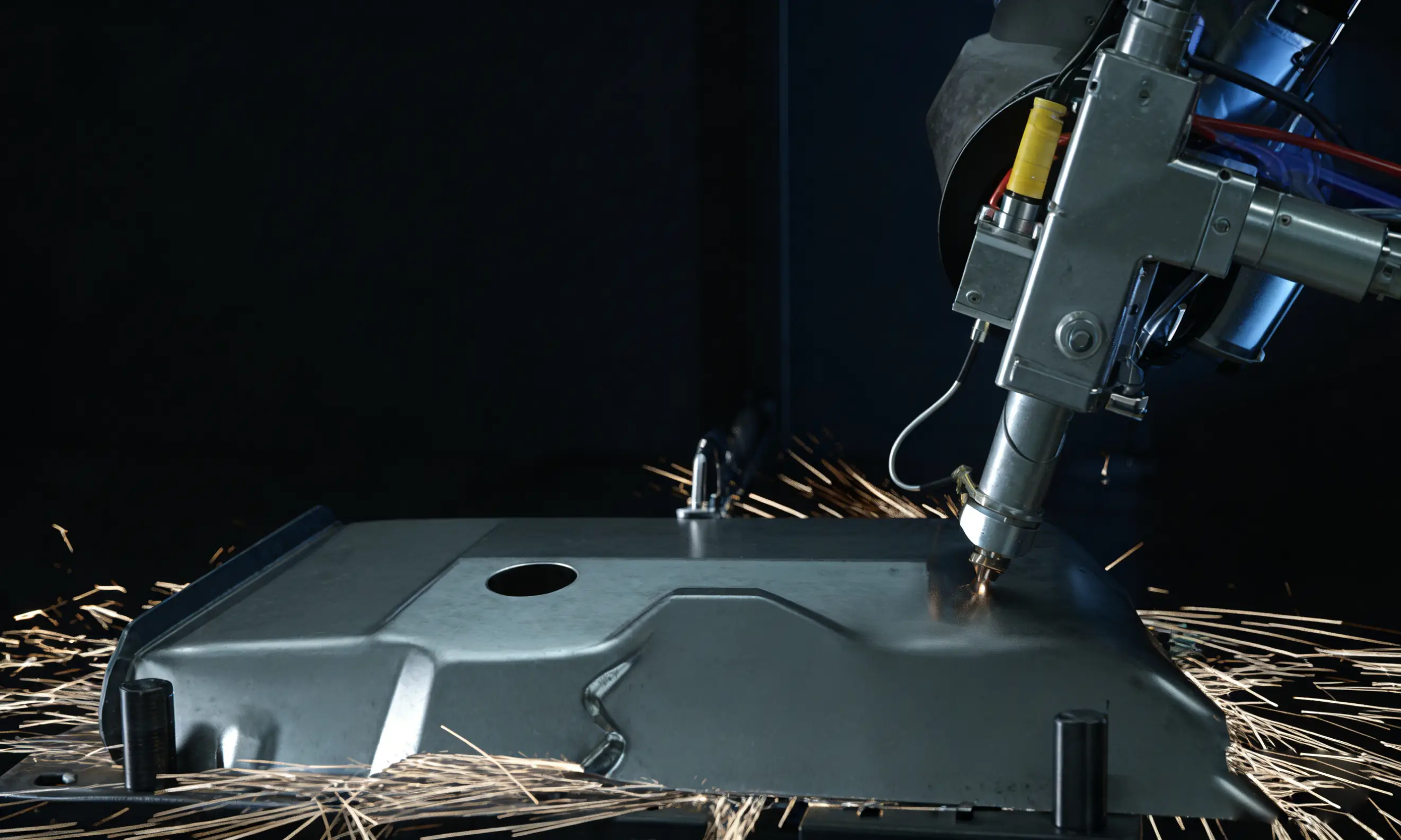

Body-in-white and powertrain: Minimizes thermal distortion on lightweight aluminum chassis and cast components, outperforming MIG/TIG in both speed and dimensional accuracy.
Comparative Analysis: Coherent vs. Traditional Welding & Competitors
-
vs. TIG: 4x faster, 200x higher heat density, no filler wire, minimal spatter, and drastically reduced rework.
-
vs. EBW: Operates at atmospheric pressure (no vacuum chamber), greater flexibility, and lower total cost of ownership (TCO).
-
vs. CO₂ lasers: Uses flexible fiber-optic beam delivery, ~40% energy efficiency, and lower maintenance.
-
vs. IPG, TRUMPF, nLIGHT: ARM dual-beam technology remains unique in solving high-reflectivity and dissimilar-metal welding challenges.
Frequently Asked Questions
What’s the maximum output power?
ARM FL20D tops at 20kW dual-ring beam. Standard HighLight FL caps at 10kW CW.
Can it weld dissimilar metals?
Yes—copper-aluminum, brass, pure copper. Multi-stage back-reflection immunity handles the process.
What certifications does it carry?
CE and FDA Class 4 laser safety certification. ARM platform supports NADCAP audit compliance for aerospace.
Is shielding gas required?
Not for most reflective material jobs. ARM beam design handles high-reflectivity metals without protective gas.
Conclusion
Some welds hold. Others perform under pressure—turbine stress at 40,000 feet, battery thermal cycling through 200,000 miles. The difference comes down to precision built in from the start.
Coherent’s HighLight FL series with ARM technology delivers tighter heat-affected zones, fewer rework cycles, and certifications quality teams can count on. Request a weld sample on your actual material—that’s where datasheets stop and real results show up.
